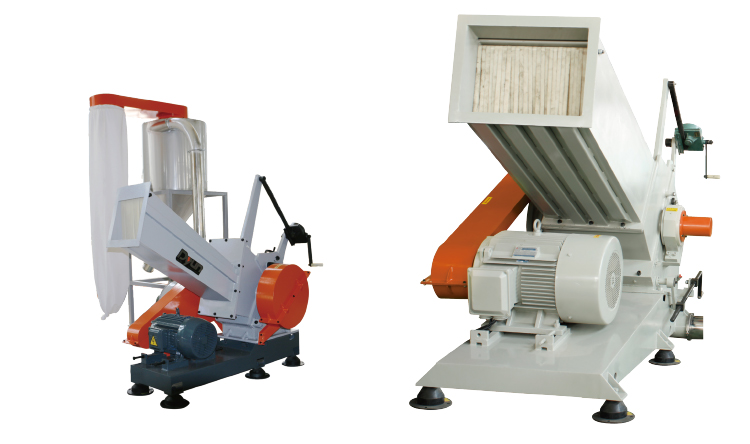

DYPS-X/M series profiles/WPC special crusher
Conventional crushers have certain difficulties in crushing plastics, profiles and wood-plastic profiles. Usually, larger crushing chambers are required to crush and recycle larger quantities of materials. For this reason, Dyun specially designed the DYPS-X series. The feeding hopper, which is almost parallel to the ground, makes feeding of longer materials extremely simple and convenient. Because the rotor of the machine can automatically grasp the material to-be-broken, there is no material blockage.
Model | Feed Mouth Size | Rotor Effective Width | Rotor Blade | Motor Power | Output |
|---|---|---|---|---|---|
| DYPS-X300 | 200×300 | 300 | 15 | 5 | 300 |
| DYPS-X600 | 300×600 | 600 | 35 | 15 | 600 |
| DYPS-M400 | 240×400 | 400 | 22 | 24 | 350 |
| DYPS-M600 | 300×600 | 600 | 55 | 36 | 650 |
Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements. | |||||
