PET/PLA Co-rotation Twin Screw Extrusion Line

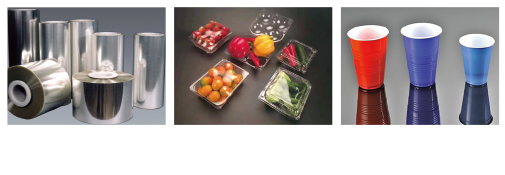

PET/PLA environmental sheet extrusion line: JWELL develops the parallel twin screw extrusion line for PET/PLA sheet, this line equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy comsuption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET/PLA resin, the symmetrical and thin-wall calender roller highten the cooling effect and improve the capactity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermoforming packaging industry.
Model | Multi layer | Single layer | Highly-efficient |
|---|---|---|---|
| Extruder specification | JWE75/40+JWE52/40-1000 | JWE75/40-1000 | JWE95/44+JWE65/44-1500 |
| Thickness of the product | 0.15-1.5mm | 0.15-1.5mm | 0.15-1.5mm |
| Main motor power | 132/15 | 160 | 250/75 |
| Max extrusion capacity | 500-600 | 450-550 | 1000-1200 |
| Note:The specifications are subject to change without prior notice. | |||
